SuperFlow PS403

SuperFlow PS403

Vicon SuperFlow PS403

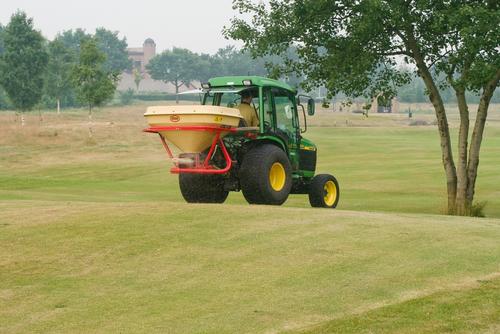

Ideal For Use on Golf Courses

With hopper capacities of 400 and 500 litres the PS403 and PS503 models are the ideal solution for small farms and special applications, like golf courses and sand and salt spreading. Spreading quality and ease of operation of this unique machine are unequalled – now as in the past. Spreading width from 1 - 14 metres.

The Advantages:

  • SuperFlow spreading system
  • Easy setting of the application rate
  • A wide range of spreading spouts
  • Border spreading is made easy!
  • Optional PS-ED II on-board computer available

Technical Specifications

SuperFlow PS403 PS503
Basic unit   PS403
Hopper capacity (l) 400 500
Hopper width (cm) 145 145
Filling height (cm) 89 101
Weight (kg) 121 126
PTO speed (rpm) 540 540
3-point linkage category 1/2 1/2
Vicon SuperFlow PS403
Vicon SuperFlow PS403
Vicon SuperFlow PS403
Vicon SuperFlow PS403



SuperFlow Spreading System

  • The SuperFlow spreading system gives you maximum accuracy in fertiliser application.
  • Spreading quality and ease of operation of this unique machine are unequalled - now as in the past.
  • The pendulum movement of the spout ensures that the application rate is always indentical on both sides. This results in a symmetric spreading pattern and an excellent overlap.
  • Accurate spreading, also on slopes.
  • The to-and-for movement of the spreading spout cuases the fertiliser to be thrown to the left and the right hand side only, never to the front and a short distance only to the rear. Wind influence is therfore insignifcant and the tractor does not get covered with fertiliser.
  • The bearings of the spreading unit have easily accessible grease nipples for maximum ease of maintenance.
Symmetric spreading pattern for optimal overlap

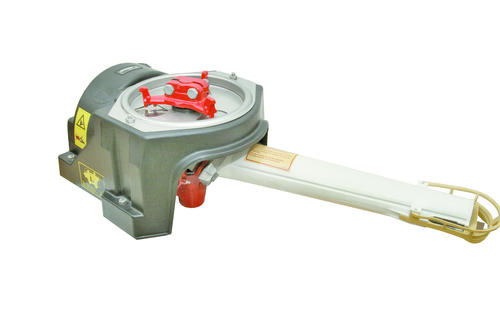

Unique SuperFlow spreading unit
Minimum wind influence on the spreading pattern
Always an accurate spreading patteren, even on small slopes

Easy Setting

  • All SuperFlow pendulum spreaders can be controlled either manually or hydraulically.
  • The plastic scale on the spreading unit allows continuous adjustment of the application rate in kg per hectare, so the risk of spreading erros is minimal.
  • Using the spreading table and the dial you can determine the desired quantity of fertiliser for every spreading width and forward speed.
  • With the optional available adjustment key you can easily adjust your spreading width (angle of the spreading spout will change). Ideal for sand spreading or in orchards!
Easy setting of the application rate
Adjustment key for changing spreading widths
Access to the spreading charts via internet or mobile!
Download now the Spreading Charts App!

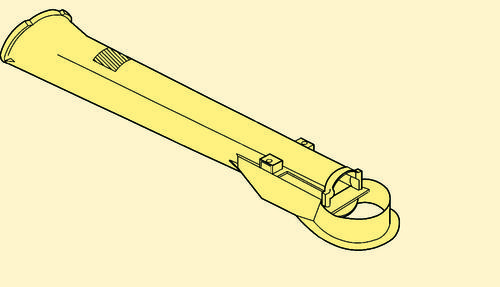

Range of Spreading Spouts

Vicon offers you a wide range of spreading spouts for a wide variety of applications.


  • Long spreading spout: used for normal spreading widths 1 - 14m.
  • Short spreading spout: used for small spreading widhts, spreading width 4 - 8m.
  • Band spreading spout: for spreading in orchards, spreading width 2 - 10m or for pesticides, spreading widths 0.75 - 4.50m.
  • Sand, salt and grid spreading spout: used for road construction and combatting icy conditions, spreading widths 5 - 6m or 2 - 4m possible.
  • Narrow spreading spout: for spreading in orchards and green stripes, spreading width 1.5 - 2m.
  • Boundary spreading spout: prevents fertiliser from spreading into ditches or hedges.
  • A-symmetrical spreading spout left/right: for orchards, green strips and fish-farms, spreading width 4 - 6m.
Spreading pattern using short spreading spout
Spreading pattern using narrow or sand/salt/grid spreading spout
Spreading pattern using band spreading spout
Spreading pattern using a-symmetrical spreading spout

Border spreading

  • Spreading along field edges and tramline border spreading is no problem at all - thanks to the border spreading plate and the tramline cylinder. When working along the filed boundary you can limit the spreading width using the border spreading plate and when on the tramline you just tilt the spreader 7° if you have to operate near fences or ditches.
  • Border spreading plate: the border spreading plate prevents fertiliser being spread beyond the field boundary. Can be folded form working into transport position from the driver's seat.
  • Tramline cylinder: using the tramline cylinder the spreader is inclined, allowing spreading up to the border of the field.
Border spreading plate for PS403 and PS04 models
Border spreading is easy!
Tramline cylinder for PS04 models

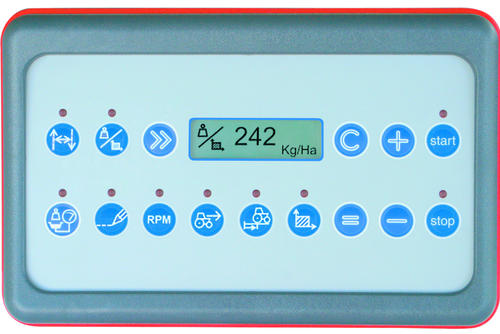

PS-ED II on-board computer

  • The PS-ED II on-board computer allows the metering disc to be adjusted from the tractor cab and fits to all Vicon pendulum spreaders.
  • Forward speed is continuously checked by a wheel sensor or by radar and transmitted to the PS-ED II system which in turn ensures a constant application rate whatever the forward speed. The consequence is an absolutely uniform spreading pattern in the direction of travel. The quantity can be increased or decreased at any time during work.
  • Operators will find the PS-ED II exceptionally easy to operate. All you have to wach over is a control panel with its clearly understandable display.
Spreading pattern with PS-ED II
Spreading pattern without PS-ED II

Optional Equipment

  • To increase the hopper capacity of the basic pendulum spreaders there are different hopper capacities available: 100, 110, 200, 400, 600 and 900 litres, depending per model.
  • A hopper cover protects the fertiliser from moisture and dirt. For filling the hopper the cover can be easily folded.
  • For all PS spreaders is an optional lighting set available. Also reflector decals can be ordered for safe transport on the roads.
  • A calibration container allows calibration tests to be performed with spout in place.

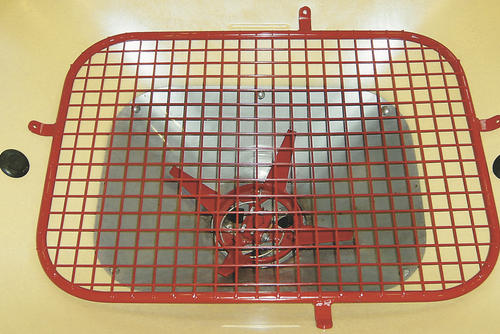

  • The agitator ensures an even material feed to the spreading unit. A safety grid protects the agitator.
  • The set of pivoting wheels allows the spreader to be easily moved when detached from the tractor.
  • The fine seed insert shuts two of the three openings of the metering device for the application of small quantities of fine seed.
  • A stainless steel insert for the hopper is needed when spreading sand or salt.
Optional available hopper cover
Easy calibration
Optional lighting and reflector set
Stainless steel insert for sand and salt spreading
