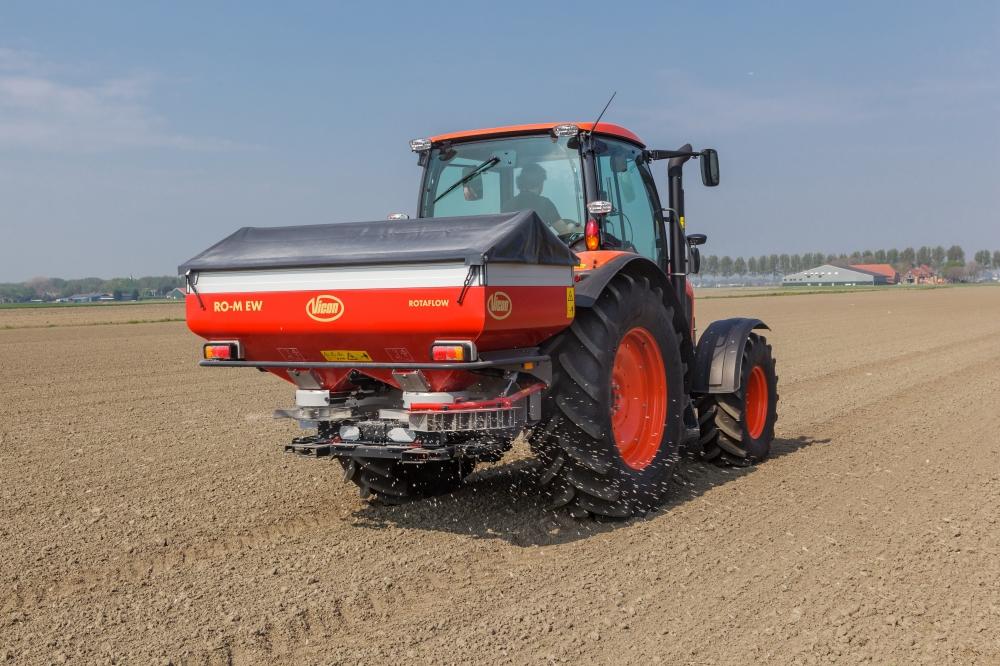

RotaFlow RO-M EW

RotaFlow RO-M EW

Vicon RotaFlow RO-M EW

Spreading the Easy Way!

The RO-M EW (Easy Weigh) is the ideal weighing spreader for the smaller grower! This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. The basic hopper capacity is 1.100 litres, but this volume can be increased with maximal 2 easy to assemble alumunium hopper extensions up to 2000 litre hopper capacity. Working widths from 10 up to 24m are possible. An optional kit of vanes is available for 27/28m spreading. The RO-M EW can be operated with the IsoMatch Tellus, IsoMatch Tellus GO terminal or any ISOBUS compatible tractor terminal. Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality: spreading the Easy Way!

The Advantages:

  • RotaFlow spreading system
  • Weighing system with unique reference sensor
  • FlowPilot for quick and easy adjustment
  • Border spreading is easy!
  • ISOBUS 11783 compatible for easy plug and play
  • Possible in combination with IsoMatch GEOcontrol

Technical Specifications

RO-M EW RO-M EW 1100 RO-M EW 1550 RO-M EW 2000
Hopper capacity (l) 1100 1550 2000
Filling height (cm) 100 119 138
Width (cm) 220 220 220
Filling width (cm) 214 214 214
Empty weight (kg) 380 400 425
Spread width (m) 10 - 24m (27/28)* 10 - 24m (27/28)* 10 - 24m (27/28)*
Output (kg/min) 10 - 320 10 - 320 10 - 320

* Depending on fertiliser type and type of vanes.

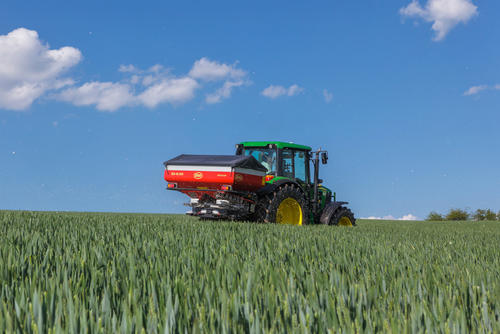

Vicon RotaFlow RO-M EW
Vicon RotaFlow RO-M EW
Vicon RotaFlow RO-M EW
Vicon RotaFlow RO-M EW


Highlights
Highlights

RotaFlow Spreading System

  • No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
  • Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
  • Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
  • Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
  • Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
8 vanes per disc
Up to 24m
From 24m
RotaFlow principle

Weighing System

  • Continuous dynamic "online - calibration" with high frequency communication signal.
  • Vicons unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Vicon reference sensor gives you absolute accuracy, because every kilo counts!
  • Load cells in combination with the unique reference sensor:
    - Auto calibrating and continuous weighing system
    - Automatic correction on slopes
    - Automatic correction of shocks, even on rough terrain
    - Automatic speed related dosing system
    - No calibration test needed
  • Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!
Weighing system RO-EDW
Weigh cell
Actuators to open and close
Reference sensor RO-M EW

FlowPilot: Easy Setting and Adjustment

  • The compact FlowPilot 'dashboard' gives you considerably simplified accurate setting and adjustment of applicaton rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
  • The development department of Vicons spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirement.
  • The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The RotaFlow 6 step checklist helps you to ensure consistent accuracy in all field conditions:
    1. Select fertiliser type
    2. Determine granule size and distribution
    3. Determine litre weight
    4. Select spreading table
    5. Select field settings
    6. Adjust FlowPilot system
Granule size box
Spreader Competence Centre
Access to the spreading charts via internet or mobile!
Download the Spreading Charts App!

Border Spreading

  • Vicon offers the TrimFlow system or manual/hydraulic border spreading plate for border spreading. The TrimFlow can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the RO-M is also a tramline cylinder optional available.
  • With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
  • With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
  • The Border Spreading Indicator (BSI), indicates which border spreading device is active.
KV_exacta_206
Border spreading using the TrimFlow system
Hydraulic border spreading plate (not for RO-C)
Boundary track spreading
One side boundary spreading

ISOBUS Control

  • ISOBUS intelligence: Standard on Our Weighing Spreaders
    You are ensured of the ISOBUS compatibiliy from tractor to the spreader and spreader to tractor, meaning that all data collection from your spreader is centralised and can be easily transferred to your (tractor)terminal in the tractor cabin. Easy plug and play!
  • IsoMatch Tellus GO:
    The IsoMatch Tellus GO is a Universal ISOBUS Terminal. This multifunctional one-screen terminal has been developed for fast and simple control of any ISOBUS implement, giving the farmer a 'custom made' experience as it suits all needs for simple and efficient handling of farming machinery and tasks.
  • IsoMatch Tellus terminal:
    The IsoMatch Tellus is the first Universal Terminal with the capability to view and operate 2 different ISOBUS interfaces at once. This allows for example direct control of 2 implements at the same time for continuous observation of a camera view, without switching screen.
    • Large 12,1" colour touch-screen
    • Intuitive operation
    • Basic DOC registration program to save operational information directly to USB
    • Four USB slots for easy data exchange, wireless USB stick or USB to serial cable for additional sensors
    • Build in PDF reader
    • RS232 connection for GPS receivers or sensors
    • Internet connection via a wireless USB stick or router
    • Integrated web browser



ISOBUS Intelligence
IsoMatch Tellus GO
IsoMatch Tellus with IsoMatch GEOcontrol
Serial port to connect external sources

IsoMatch GEOcontrol

IsoMatch GEOcontrol is an additional software application within the IsoMatch Tellus that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfils the future needs in terms of easy, smart and efficient farming.

  • Section control: Automatic switching on and off implement sections on headlands, boundaries and already covered areas to minimise overlap.
  • Variable rate control: Automatically adjusts the implement application rate based on input from the field prescription.
  • Documentation: Saves all operational job data and field maps for exchange via USB to farm management information systems.
  • Manual guidance: Advised driving position using guidance lines in the field and on headlands. Smart boundary recording: independent from the working width, even without any implement corrected. Boundary shrinking: create new inner boundaries by setting the desired width of the headland. Manual guidance for all operations, includes non-electric or non-ISOBUS implements.

IsoMatch GEOcontrol - The Advantages

  • Easy and comfort of operation, due to not having to manually switch on or off sections or change the application rate. You can focus 100% on driving in the field.
  • More efficient work and avoiding overlap leads to cost savings of 5-10% on fertiliser. Better growing conditions and increased yield.
  • With IsoMatch GEOcontrol, working at night becomes very easy. IsoMatch GEOcontrol reduces the workload considerably.
IsoMatch GEOcontrol Fieldresult3.jpg
IsoMatch Global GPS receiver
Spreading at night
IsoMatch InLine light bar
Advised driving position using guidance lines
