Vicon RotaFlow RO-XL

The High Capacity Model

The RO-XL is the high capacity model of the RotaFlow range. The heavy duty construction of the RO-XL makes it possible to carry up a maximum of 3.450 or 3.900 litres of fertiliser with 3 extension rims. Easy setting and adjustment can be done with the FlowPilot on each spreading disc. An innovative drive line to each disc ensures gentle agitation due to the “slow rotating” agitator system, which runs at 15% of the spreading disc speed. Both discs can be shut off independently to spread half the working width, essential for preventing lodging in tapering headlands.

The Advantages:

  • RotaFlow spreading system
  • FlowPilot for quick and easy adjustment
  • Border spreading is easy!
  • Standard and optional equipment available to fulfil your requirements
  • Comfort Control II to operate the spreader from the closed tractor cab

Technical Specifications

RO-XL (narrow) 1500 2150 2800 3450
Hopper capacity (l) 1500 2150 2800 3450
Filling height (cm) 110 129 148 167
Width (cm) 275 275 275 275
Filling width (cm) 269 269 269 269
Empty weight (kg) 495 525 555 585
Spread width (m) 12 - 45 (54)* 12 - 45 (54)* 12 - 45 (54)* 12 - 45 (54)*
Output (kg/min) 10 - 320 10 - 320 10 - 320 10 - 320
RO-XL (wide) 1875 2550 3225 3900
Hopper capacity (l) 1875 2550 3225 3900
Filling height (cm) 120 139 158 177
Width (cm) 290 290 290 290
Filling width (cm) 284 284 284 284
Empty weight (kg) 530 565 595 625
Spread width (m) 12 - 45 (54)* 12 - 45 (54)* 12 - 45 (54)* 12 - 45 (54)*
Output (kg/min) 10 - 320 10 - 320 10 - 320 10 - 320

* Depending on fertiliser type and type of vanes

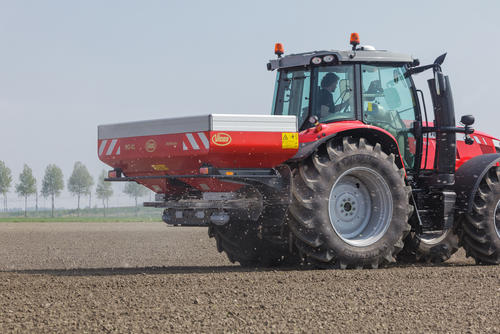

VIC_RO_205
Vicon RotaFlow RO-XL
Vicon RotaFlow RO-XL
Vicon RotaFlow RO-XL
Vicon RotaFlow RO-XL

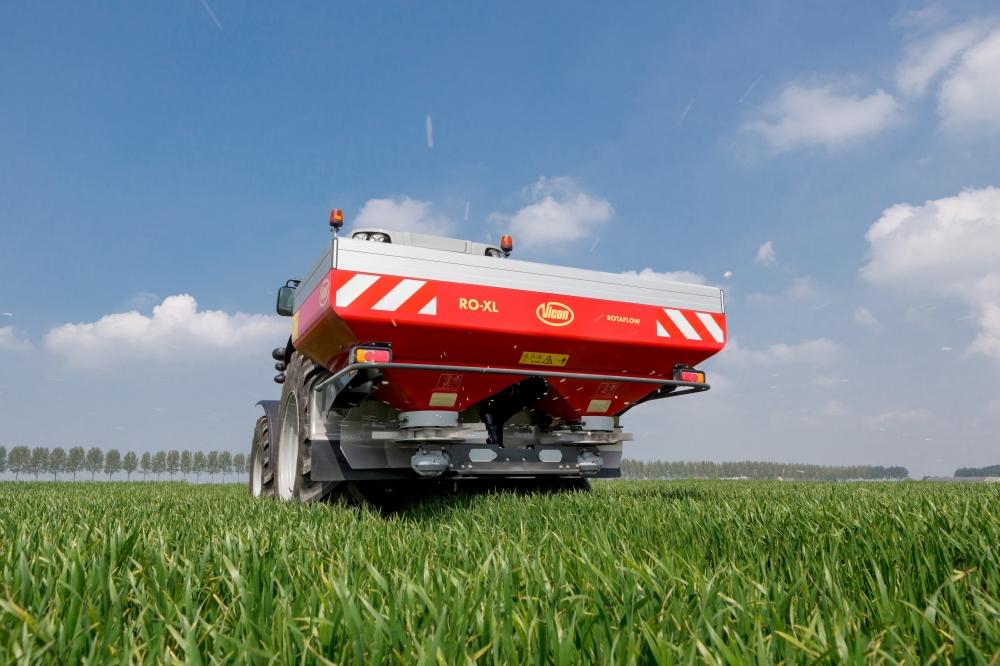

Highlights

Highlights

RotaFlow Spreading System

  • No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
  • Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
  • Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
  • Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
  • Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
8 vanes per disc
Up to 24m
From 24m
RotaFlow principle

FlowPilot: Easy Setting and Adjustment

  • The compact FlowPilot 'dashboard' gives you considerably simplified accurate setting and adjustment of applicaton rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
  • The development department of Vicons spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirement.
  • The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The RotaFlow 6 step checklist helps you to ensure consistent accuracy in all field conditions:
    1. Select fertiliser type
    2. Determine granule size and distribution
    3. Determine litre weight
    4. Select spreading table
    5. Select field settings
    6. Adjust FlowPilot system
Granule size box
Spreader Competence Centre
Access to the spreading charts via internet or mobile!
Download the Spreading Charts App!

Border Spreading

  • Vicon offers the TrimFlow system or manual/hydraulic border spreading plate for border spreading. The TrimFlow can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the RO-M is also a tramline cylinder optional available.
  • With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
  • With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
  • The Border Spreading Indicator (BSI), indicates which border spreading device is active.
KV_exacta_206
Border spreading using the TrimFlow system
Hydraulic border spreading plate (not for RO-C)
Boundary track spreading
One side boundary spreading

Standard and Optional Equipment

  • The RO-XL/RO-EDW spreaders are also available mounted on a trailer frame.
  • Central Hydraulic Drive as option available for the RO-XL/EDW.
  • Easy to assemble aluminium hopper extensions are available to increase hopper capacity.
  • An easy to fold in and out hopper cover is as option availble. Simple to fit!
  • Left/right shut off valve for spreading at half working widths is optional available.
  • To ensure a consistent flow when spreading low quantities, the RotaFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.
  • Delta shaped heavy duty grids are standard equipment of the RO-XL/RO-EDW spreader.
  • Centre gear box with 2 input shafts for high and low disc speed settings is standard equipment of the RO-XL/RO-EDW spreader.
  • Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.
  • Easy calibration is done with the optional calibration container.
  • Long life time LED lighting set, are optional for the RO-C, RO-M and RO-M EW. For the RO-XL, RO-EDW and RO-EDW GEOspread spreader is this standard equipment.
  • The mud guards (option) protect the spreading disc against mud, water etc.
VIC_RO_220
Hydraulic Drive
LED lighting set (optional for RO-C, RO-M and RO-M EW)
Hopper emptying kit
Mud guards (option for RO-XL/RO-EDW/RO-EDW GEOspread)

Comfort Control II

  • With Comfort Control II, you can operate the spreader from the closed tractor cab!
  • The operating panel provides all the functions to start and stop the spreader, to set the right application rate and to increase and decrease the application rate on the move. The latest settings are retained in the memory function.
  • Both discs can be shut off independently to spread half working width.
  • Specially sealed actuators are used to cope with corrosive conditions.
KV_exacta_207
Comfort Control II
Comfort Control II
Comfort Control II
Comfort Control II
