T-Rex 400/402 - 450/452 - 500/502 - 550
Vicon T-Rex 400/402 - 450/452 - 500/502 - 550
High Capacity Silage wagons

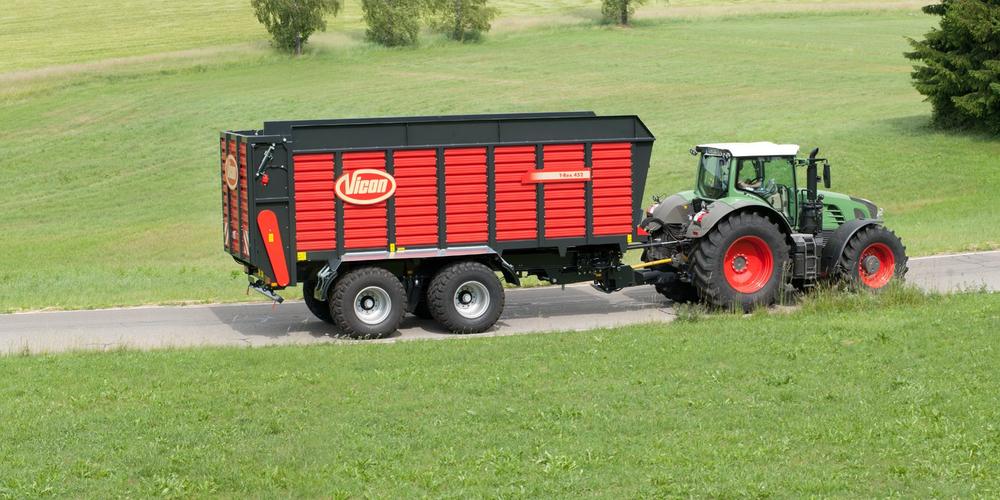

The Vicon T-Rex silage wagons are recognised by massive capacity, large loading volume, and high discharge speed. As these factors to a large extend determine the efficiency of the harvesting process, the T-Rex series are the ideal machines for transport of maize and grass silage.
With a capacity of 40-45-50-55m³ respectively and a loading capacity of 22 and 34 tonnes, they contribute to an optimum harvesting process. The silage wagons are fitted with a closed steel setup, with sturdy lateral supports and profiled metal sheets.

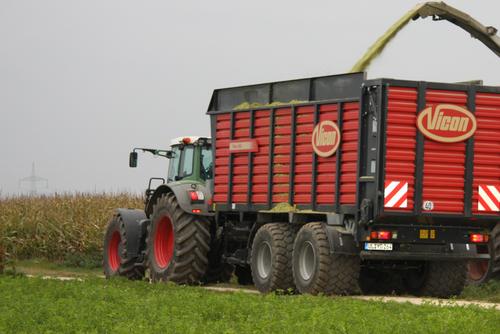

- High capacity transport wagons, ideal for transport of maize and grass silage.
- Loading volume of 40, 45, 50 and 55m³.
- Fast and efficient unloading thanks to the wide width of the tailgate and the chain-and-slat conveyor.
- Strong body design with metal sheets and solid side support.

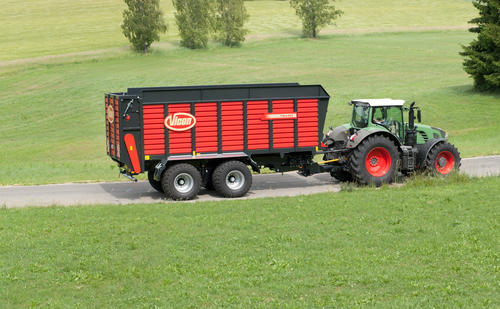

- T-Rex 400, 450 and 500 are fitted with blade sprung tandem axles.
- T-Rex 550 is fitted with hydraulic sprung tridem axles.
|Loading Capacity to DIN||Load Capacity||Load Weight|
|T-Rex 400 / 402||38.8m³||34m³||22000kg|
|T-Rex 450 / 452||40.9m³||45m³||24000kg|
|T-Rex 500 / 502||44m³||50m³||24000kg|
- The strong and very stable tandem axle offers smooth operation and is designed for safe and fast transport of the crop to the silage clamp or when working off-road in the field.

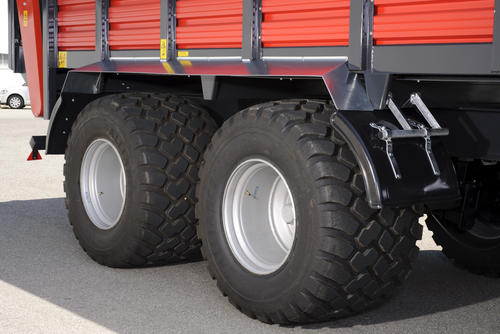

- The T-Rex is fitted with parabolic spring loaded boogie axles. The asymmetric mounted springs and wide distance of the suspension ensures that both axles are balanced at any time.
- This provides even weight distribution with load evenly distributed on all 4 wheels. This makes the T-Rex easier to pull, and reduces soil compaction and tyre wear when operating in the field.
- The standard level of specification comprises a hydraulic brake system and 700/50R 26.5 tyres, but will accept tyres up to 800mm wide, which significantly reduces ground pressure.
- The T-Rex is standard fitted with steered wheels, improving manoeuvrability when space is limited. It also reduces ground damages when turning in the fi eld and tyre wear.

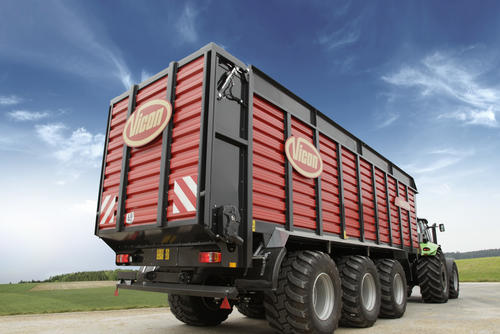

- T-Rex 550 has a hydraulic sprung tridem boogie design, which can be equipped with an axle lift.
- The T-Rex 550 is fi tted with power steering for accurate and safe manoeuvrability in the field.
- The large dimensioned hydraulic chain-and-slat conveyor is split into two segments and features four heavy duty chains designed to bear even the heaviest of loads.
- As a safety function the scraper floor cannot be operated as long as the rear door is closed.
- The large tailgate in combination with the chain-and-slat conveyor provides fast and efficient unloading.
- The sensor controlled tailgate is operated hydraulically and locked mechanically.
- The T-Rex can be fitted with two large diameter discharge rollers, which are driven by maintenance-friendly driveshaft, to unload the material in a uniform and even mat.
- Easy access to the chamber is provided by the optional access door and ladder.

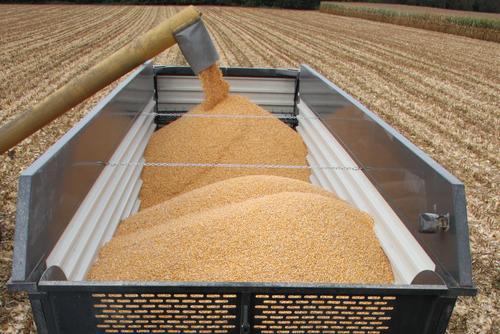

- Grain kit for canola, wheat and grain available as option.
- With the optional grain kit the floor is tightened with by strong brushes.
- The lower part of the front wall is covered with an industrial plastic film.
- The slat-and-chain conveyor will be completely covered by the tailgate when closed, ensuring that no material is lost on the road.
Multi Use Wagon
- High capacity transport wagons, ideal for transport of maize, grass silage and wood chops.
- Loading volume of 40, 45, 50 and 55 m³.
- Large capacity and fast unloading are decisive factors when setting up a costefficient harvesting system.
- The T-Rex transport wagons are designed to match these requirements and are recognised by massive capacity, large loading volume, and high discharge speed
