Extra 328F-332F Front Mounted Disc Mower

Extra 328F-332F Front Mounted Disc Mower

Vicon EXTRΔ 328F - 332F

Front Mounted Disc Mowers

Outstanding ground following ability, easy operation and low weight are among the highlights of this machine. The Vicon EXTRΔ 328F and 332F are characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.

The Advantages:

  • 2.8-3.2m working width.
  • BreakAway Solution
  • Flexible Swath Width
  • 540/1000 rpm Gearbox
  • Excellent Ground Adaptation
  • Fully welded EXTRΔ cutterbar with triangular discs.

Technical Specifications:

  Working Wdith Weight Power Req, Min
 EXTRΔ 328F  2.84m  670kg  26/35 kW/hp
 EXTRΔ 332F  3.18m  710kg  29/40 kW/hp

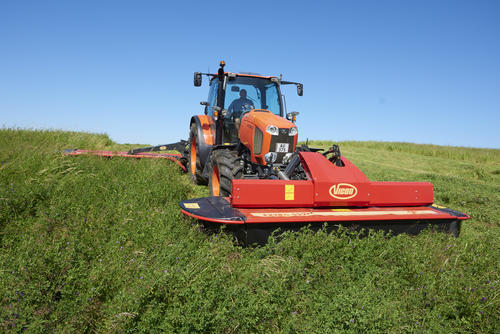

VI EXTRA 332F 002




Highlights


EXTRΔ Cutterbar

  • The EXTRΔ cutterbar is designed for low maintenance and offers a very quiet operation.
  • Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
  • Fully welded cutterbar for a very strong construction.
  • Even number of contrarotating discs for improved overlap.
  • Three bladed discs for more cuts.
  • Smooth stone guard design for excellent cutting quality.
  • High oil capacity ensuring low working temperature.
  • Low noise level thanks to specially tooled gear wheels.
  • Twisted knives for a clean cut in all conditions.
Fully welded cutterbar
Specially tooled gear wheels
Always contra-rotating discs
Easy removal of disc bearing housing

Ground Adaptation

The new EXTRΔ 332F is characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.

To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage.

The mower design allows a transverse adaptation of up to 17°

front
Ground Adaptation
Ground Adaptation

750 or 1000 RPM

  • Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved.
  • This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed.
pulley
