Vicon EXTRΔ 390 - 395

Butterfly Disc Mowers

Vicon EXTRΔ 390-395 are the perfect machines for the ever growing number of cattle farmers looking for an effective solution enabling them to mow extensive areas with a relatively small tractor. Designed to match the needs of large-scale mowing, EXTRΔ 390-395 are packed with features to meet these demands. The centre suspended mowing units, in combination with the triangular discs, offer unmatched mowing performance.

The Advantages:

  • Centre Suspension
  • 8.70-9.50m Working Width
  • NonStop BreakAway
  • Vertical Transport Position
  • Fully welded EXTRΔ cutterbar with triangular discs.

Technical Specifications:

  Working Width Weight Power Req, Min
EXTRΔ 390  8.70m  1360kg 90/120 kW/hp
EXTRΔ 395  9.50m  1500kg 110/150 kW/hp
VIEXTRA390014
Vicon EXTRΔ 390 - 395
Vicon EXTRΔ 390 - 395
Vicon EXTRΔ 390 - 395
Vicon EXTRΔ 390 - 395



Highlights

Highlights

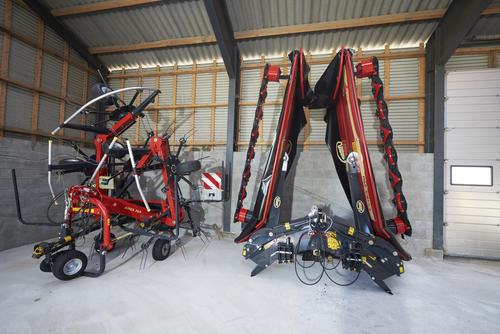

Vertical Parking Stand

With the new parking device, storage of the EXTR∆ 390 & 395 is easy and convenient, requiring minimum space during winter storage. The EXTR∆ 390 & 395 are firmly parked on a strong and stable parking foot, bringing the total height below 4m.

VI EXTRA 390-395 VERT PARK STAND_001
Vertical Parking Stand
Vertical Parking Stand
Vertical Parking Stand

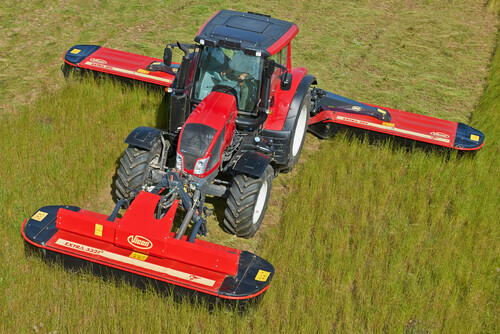

Suspension

  • The mowing units are centre suspended offering an even weight distribution across the complete mower width.
  • Faster and more precise adaptation to ground contours is also achieved due to the centre suspended design.
  • The benefit is less skid wear and optimum protection of the stubble.
  • When turning on headlands the hydraulic cylinder, which is also used when going into transport position, ensures ample clearance to the swath, so they remain undamaged
VI EXTRA 395 0001
Suspension
BreakAway protection if hitting an obstacle
Suspension

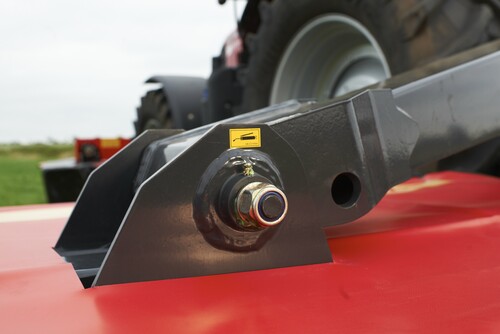

Two Mounting Options

  • EXTRΔ 390-395 can be adjusted for optimal operation according to different circumstances, such as field contours or working width of the front mounted mower.
  • To ensure optimal overlap between front and rear units, the mowing units can be mounted in two positions on the suspension arm.
  • This also gives you an option of wider overlap in hilly conditions, lessening the need for SideShift equipment.
VI EXTRA 390 0002.jpg

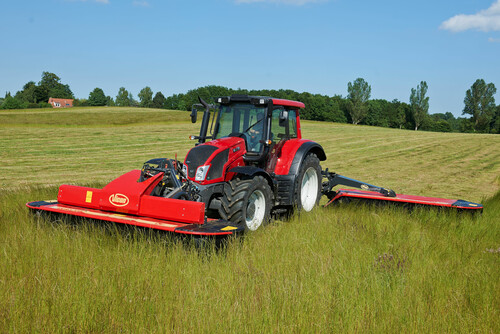

Eco-Friendly Solution

  • The EXTRΔ 390-395 is an eco-friendly, energy saving solution able to work on tractors with as little as 110 hp.
  • The low weight of only 1360 or 1500 kgs, together with the ideal weight distribution that butterfly combinations offer, give the optimum combination of low power requirements, low weight and high efficiency.
_DSC9178 copy


EXTRΔ Cutterbar

  • The EXTRΔ cutterbar is designed for low maintenance and offers a very quiet operation.
  • Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
  • Fully welded cutterbar for a very strong construction.
  • Even number of contrarotating discs for improved overlap.
  • Three bladed discs for more cuts.
  • Smooth stone guard design for excellent cutting quality.
  • High oil capacity ensuring low working temperature.
  • Low noise level thanks to specially tooled gear wheels.
  • Twisted knives for a clean cut in all conditions.
Fully welded cutterbar
Specially tooled gear wheels
Always contra-rotating discs
Easy removal of disc bearing housing
