Fanex 604 - 804

Fanex 604 - 804

Vicon Fanex 604 - 804

The Ideal Hay Making Tedders

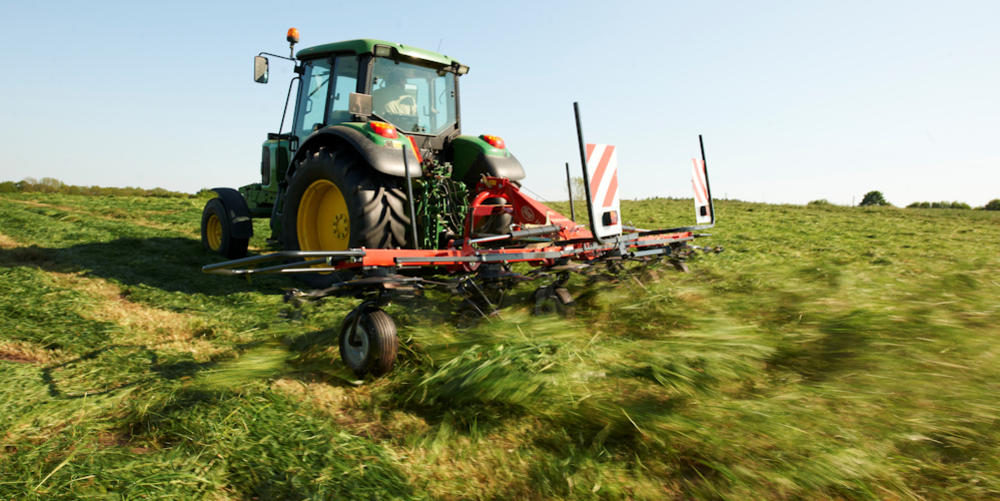

Vicon Fanex 604 and 804 are purpose built for hay making. Both models come with a strong package of features such as standard vibration dampers, strong V-shaped central unit and central adjustment for border tedding.  They offer considerable operation capabilities with their combination of 6/8 rotors and 6.05/8.05m working width. The small roors are especially designed for optimized performance while producing dry hay.

The Advantages:

  • Low maintenance CompactLine gearbox with only one grease nipple.
  • Compact tedders with low weight and power requirements.
  • Standard fitted with vibration dampers and strong central unit.
  • HexaLink driveline on Fanex 804 ensures compact folding.
  • Rotor plate dimension of 500mm
  • Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.
  • Super-C tines with large spring coil diameter for added service life.
  • Easy setting of spreading angle through simple three-way adjustment of wheel height.

Technical Specifications:

  Working Width Rotors/Tines Weight
Fanex 604 6.05m 6/5 677kg
Fanex 804 8.05m 8/5 950kg

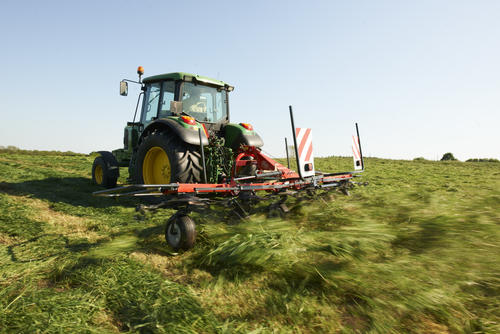

VIC Fanex 604 011.jpg
Vicon Fanex 604 - 804
Vicon Fanex 604 - 804
Fanex 804 - 8.05m working width.
Vicon Fanex 604 - 804





HexaLink Finger Clutch

Fanex 804 with Compact Transport Width

  • Despite its´8.00m working width the Fanex 804 will fold into a very compact unit for transport, and will go below 3.00m transport width.
  • The two outer rotors are fitted with the new Vicon HexaLink finger clutch, a simple yet efficient drive system that permits these rotors to turn into a 180⁰ position for transport. The remaining rotors are driven by double universals joint, providing sturdy and efficient transfer of power.

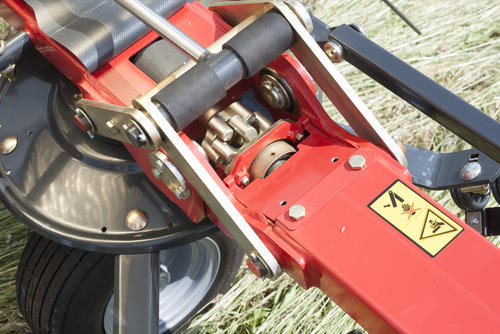

VI Fanex 804 002
HexaLink Finger Clutch
HexaLink Finger Clutch
HexaLink Finger Clutch

Spreading Angle

Simple three-way adjustment of wheel height, allows the optimum spreading angle to be achieved according to crop conditions.

  • High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
  • Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
  • The mower swaths are neatly lifted by the tines and evenly spread over the full width.
  • Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
Easy setting of spreading angle without the use of tools
The angle can be set in 3 positions

Super-C Tines

Super-C Tines – Even Spread,Clean Job

  • Made from flat steel, the tine arms form a very compact unit with the rotor plate and utilize the force of the rotor plate for higher durability of the time arm. This makes a Fanex tine arm by far more resistant to any type of load.
  • The Super-C tine can be locked in three positions to customize the pickup angle to different conditions. For heavy silages the angle can be set more aggressive and for fragile crop a gentler angle can be chosen.
  • Made from 10mm shot-peened spring steel and a coil diameter of 80mm, Super-C tines add up to the most durable and flexible tine in the market.
  • Super-C tine with symmetric spring tines ensures efficient pick-up and turning of the crop. Tines with same lengths has the added advantage that load is spread evenly on both tines, providing longer life time.
VIC Tedder Rotor 001.jpg
Super-C Tines
Super-C Tines
Super-C Tines
Super-C Tines

Heavy Duty Main Frame Design

  • Box shaped main frame with only one welding seam for maximum rigidity.
  • The frame design is fully enclosed at the top edge for maximum strength – an exceptionally solid design,
  • Double universal joints give smooth and efficient transfer of power.
  • Greasable pivoting points with large diameter guarantee a very strong and reliable construction.
Regreasable pivot points
Heavy Duty Main Frame Design
Heavy Duty Main Frame Design

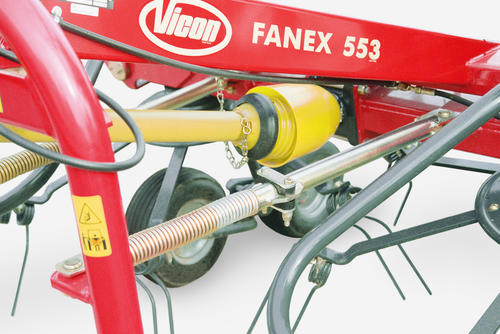

Oscillation Dampers

  • Vicon oscillation dampers ensure excellent ground contour following and tedder flotation.
  • The construction of the oscillation dampers results in a smooth and even distribution of the grass, thanks to the constant tine distance from the ground.
  • Widely spaced mounting points - no risk of ‘hunting’.
  • Excellent running characteristics.
  • Low-positioned linkage on the headstock, for more effective damping action during transport.
  • No risk of the tedder running under the tractor on downhill work, excellent tedding at all times through constant tine spacing to the ground.
Conventional Systems
Vicon oscillation dampers
The oscillation dampers ensure an even tine-to-ground distance

Night Swathing

With the optional reduction gearbox it is possible to place night swaths.

The rotors will run at reduced rpm to place the crop into smaller swaths

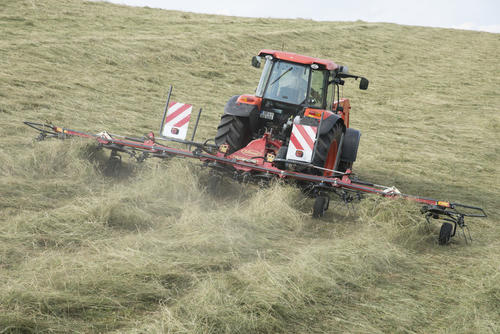

VI Fanex 804 021
Night Swathing
Night Swathing
