Andex 1104

Andex 1104

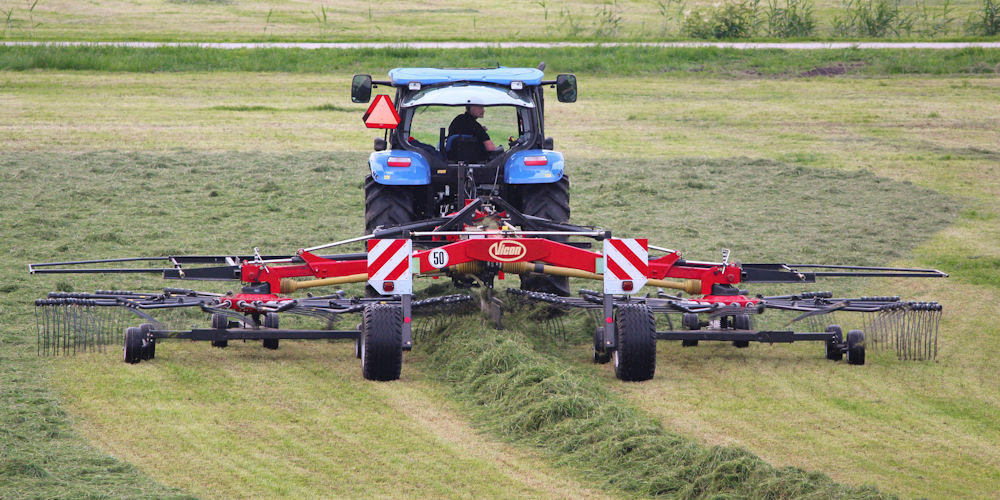

Vicon Andex 1104

Heavy Duty Machine with Compact Design
The Andex 1104 is a twin rotor rake with 11.00m working width for the high performance segment, normally covered by more expensive four rotor rakes. The Andex 1104 offers easy operation, excellent manoeuvrability and a heavy duty design. With 15 double tangential tine arms and 4 double tines per arm, the Andex 1104 is well equipped for maximum raking performance. The high tine frequency ensures clean raking performance, even at reduced rpm and high forward speed.

The Advantages:

  • Working width of 9.20-11.0m
  • ProLine oilbath gearbox.
  • TerraLink Quattro for perfect ground followings
  • Hydraulic adjustment of working width width
  • Hydraulic height adjustment of the rotors
  • Active wheel steering, allowing sharp turns on headlands and during transport

Technical Specifications:

  Working Width Tine Arms Weight
Andex 1104 9.2-11.0m 2x15 2865kg
VI Andex 1104 0001.jpg
Vicon Andex 1104
Vicon Andex 1104
Vicon Andex 1104
Vicon Andex 1104





ProLine Gearbox

  • The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
  • The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
  • The hardened cam track is adjustable, and features a flat curve and an extremely large 400 mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
  • Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
VIC Andex ProLine Gearbox 001
Oil-immersed crown wheel and pinion reduces wear to a minimum.
Fully enclosed design ensures full and permanent lubrication.
Injection moulded aluminium tine arm support housings.

Electronic Control Box

  • The handy control box, placed in the tractor cab, controls the main functions needed during work.
  • Lift and height adjustment of rotors can be done individually.
  • Adjustment of working width and swath width.
  • Transport locking device.
  • All functions can be pre-selected and then executed by operating the valve on the tractor.
Setting of working and swath width
Setting of rotor height
Lift of rotors on headlands
Conversion for transport incl. transport locking

TerraLink Quattro

  • Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
  • The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
  • The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
  • Maintenance-free system - no pivots or joints to wear out.
  • Automatic rotor suspension, ensuring smooth operation.
  • Built-in pressure bias on front wheels prevents lifting and tine bounce.
  • Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
TerraLink Quattro is a maintenance-free system.
No pivots or joints to wear out.
Undercarriage with 4 wheels.

Hydraulically Adjustable Working Width

  • The Vicon centre swath rakes offer hydraulic adjustable working width.
  • This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
Narrow swath or...
wide swath.


  • The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
  • Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
  • The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Vicon features.
Active wheel steering allows sharp turning on headlands
80° turning angle.
Outstanding ground clearance in headland position.
