Vicon Andex 724-764

Centre Swath Rakes

Vicon offers two cost-effective two rotor rakes with strong frames. The rakes produce a nice even centre swath from raking widths of between 7.2 and 7.6 m.They are mounted on a strong and stable frame to ensure long lifetime. Features such as actively steered wheels, the TerraLink Quattro system and hydraulically raised rotors are standard.

Andex 724 Hydro is fitted with hydraulically operated axles on the main frame, in order to lift and lower the machine during transport and operation. This feature significantly reduces transport height by 45cm, allowing a transport height as low as 3.45m.

The Advantages:

  • Working widths of 7.2 and 7.6m
  • CompactLine maintenance-friendly gearbox.
  • TerraLink Quattro for perfect ground followings
  • Hydraulic adjustable working width.
  • Active wheel steering with 80° turning angle for easy manoeuvrability.

 Technical Specifications:

  Working Width Tine Arms Weight
Andex 724(Hydro) 6.20-7.20m 2x11 1640kg
Andex 764 7.00-7.80m 2x11 1640kg

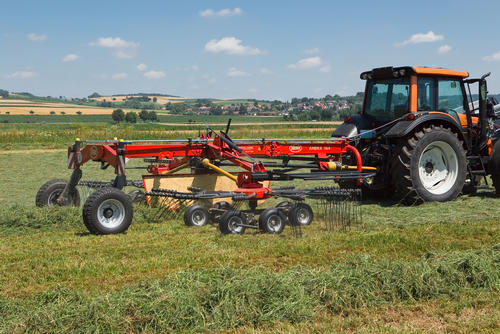

Vicon Andex 724-764
Vicon Andex 724-764
Andex 724 Hydro - Transport height 3.45m.
Vicon Andex 724-764








Highlights

Highlights

CompactLine Gearbox

  • The Vicon CompactLine rakes feature oil-immersed cam discs and guide rollers.
  • Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
  • High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
  • Vicon-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.
VIC Andex 714T Vario 015
CompactLine rotor gearbox

Manoueuvrability

  • The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
  • Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
  • The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Vicon features.
Active wheel steering allows sharp turning on headlands
80° turning angle.
Outstanding ground clearance in headland position.

TerraLink Quattro

  • Vicon rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
  • The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
  • The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
  • Maintenance-free system - no pivots or joints to wear out.
  • Automatic rotor suspension, ensuring smooth operation.
  • Built-in pressure bias on front wheels prevents lifting and tine bounce.
  • Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
TerraLink Quattro is a maintenance-free system.
No pivots or joints to wear out.
Undercarriage with 4 wheels.

Hydraulically Adjustable Working Width

  • The Vicon centre swath rakes offer hydraulic adjustable working width.
  • This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
Narrow swath or...
wide swath.
